The last letter is the finish, and it changes the part

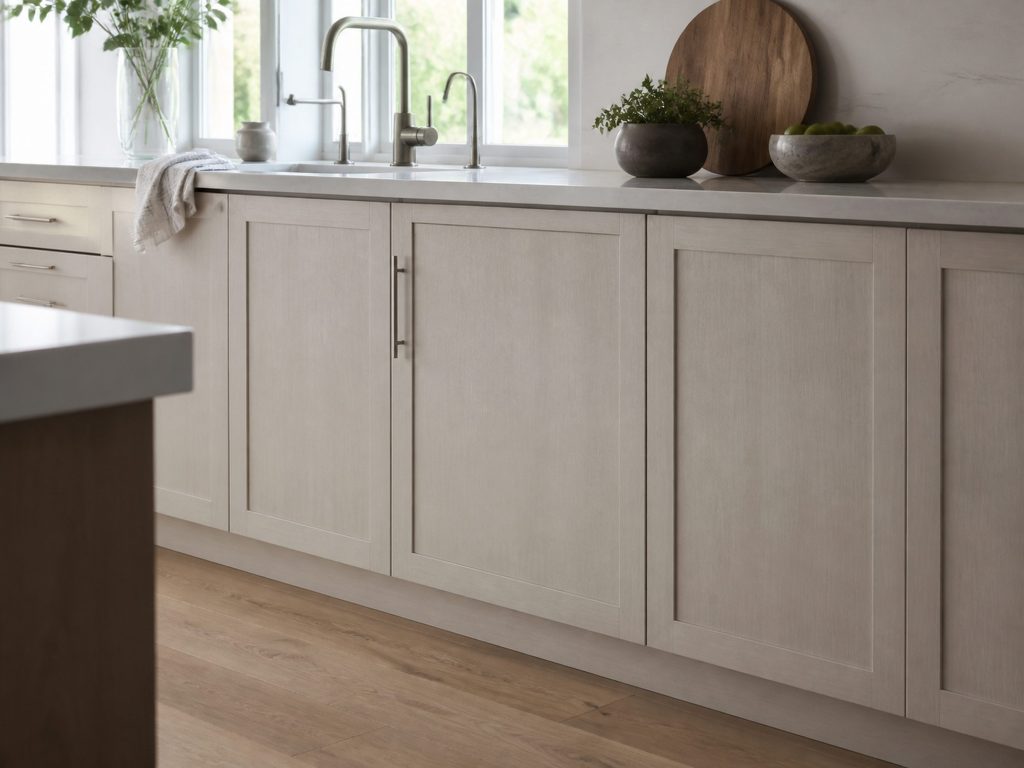

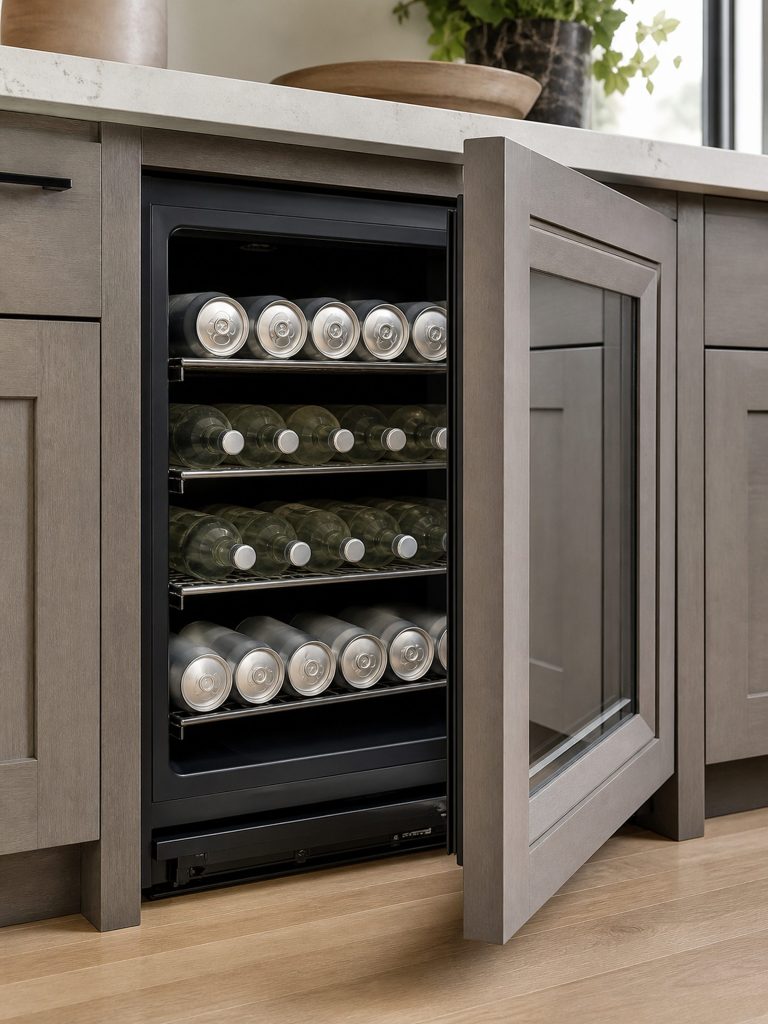

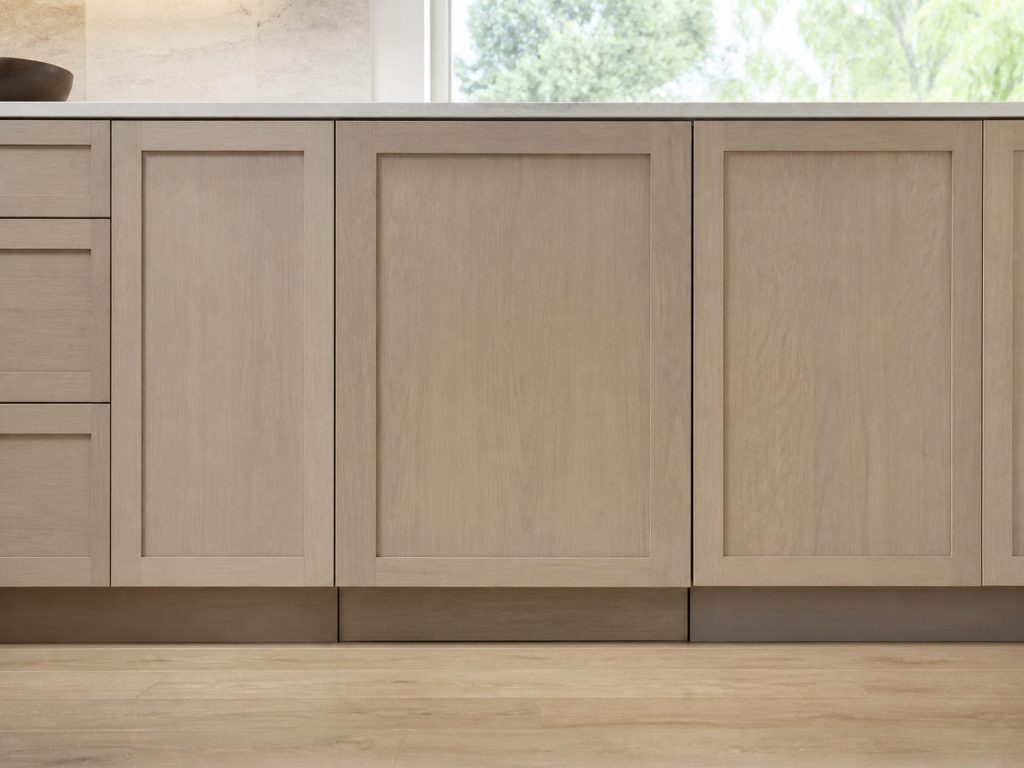

On this badge the design expression is written into the model number, at the end. L is RISE, the stainless one; M is NOIR, the black stainless one; X is panel-ready, the one that arrives without a front because your kitchen fitter is making it. JUGFL242HL, JUGFL242HM and JUGFL242HX are the same 24-inch undercounter refrigerator three times, and a door part ordered from the wrong one of them fits the opening and looks wrong in the room. That single character is the half of the number people leave off when they read it out.
And the letter before it is often the hinge

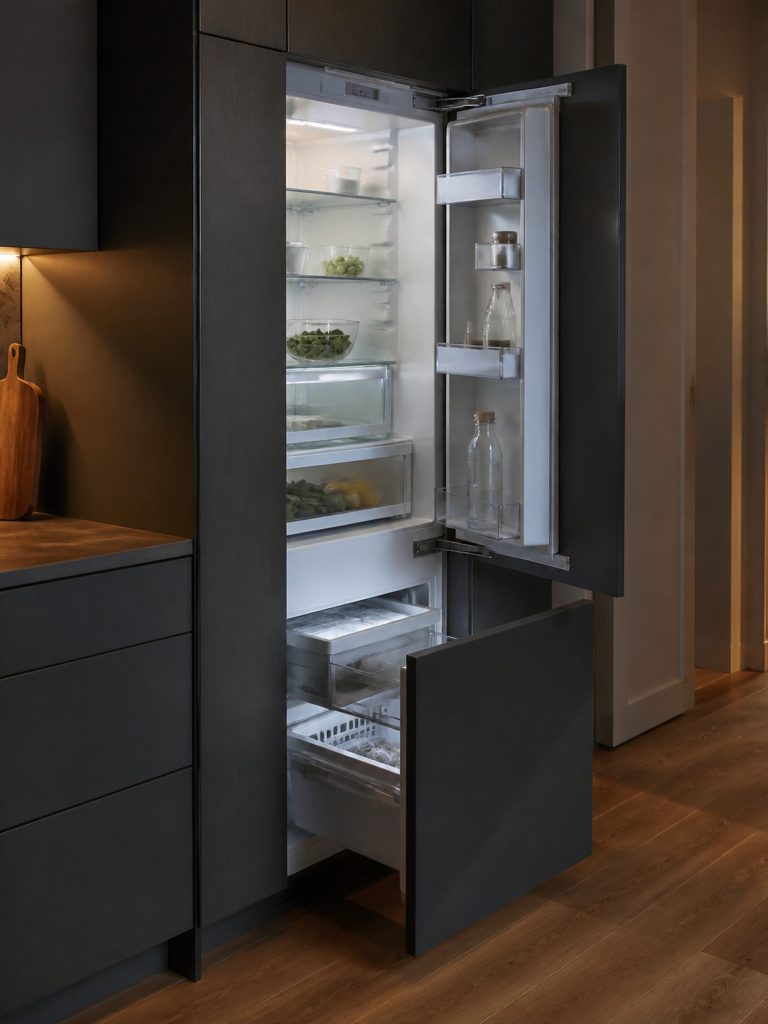

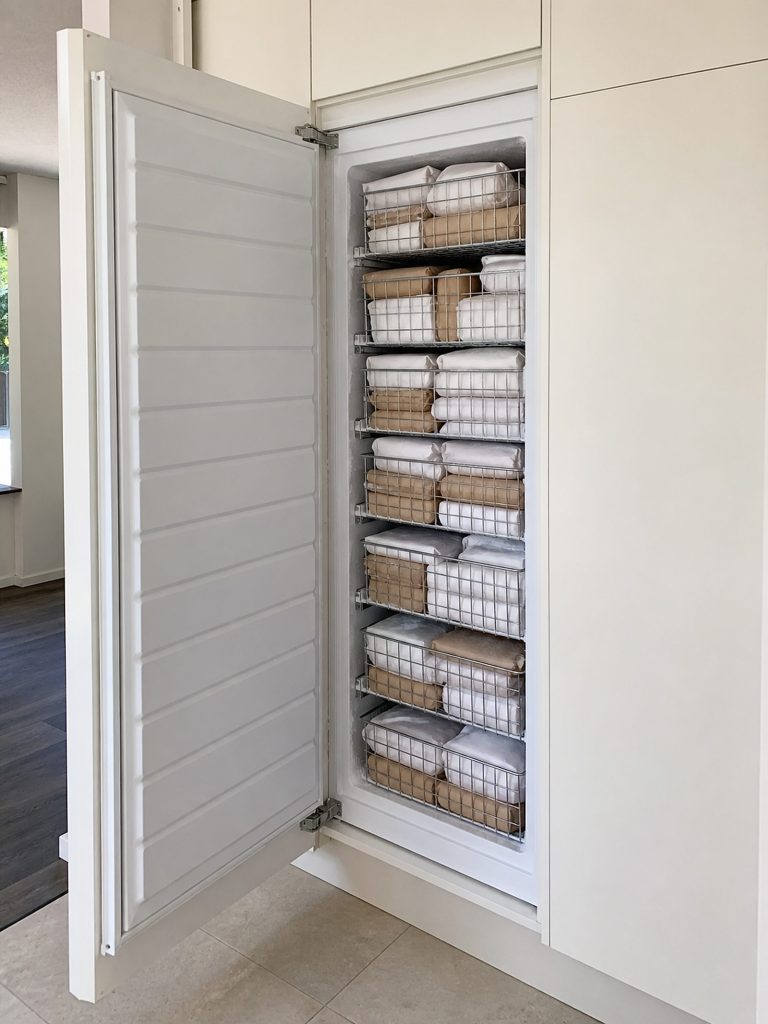

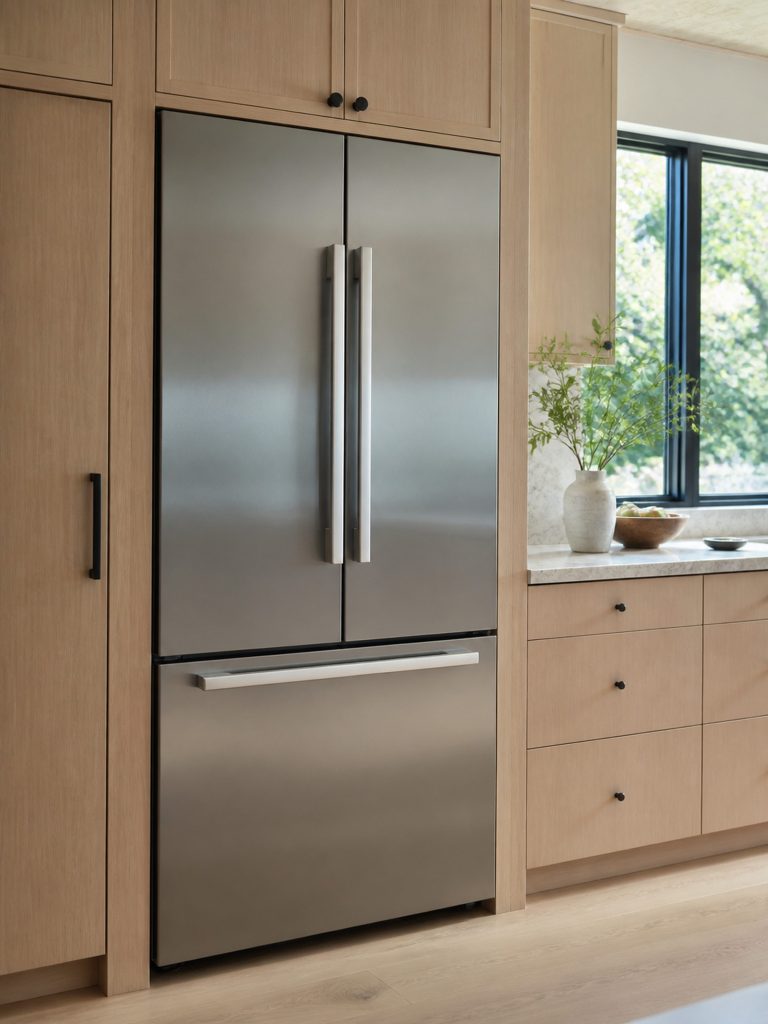

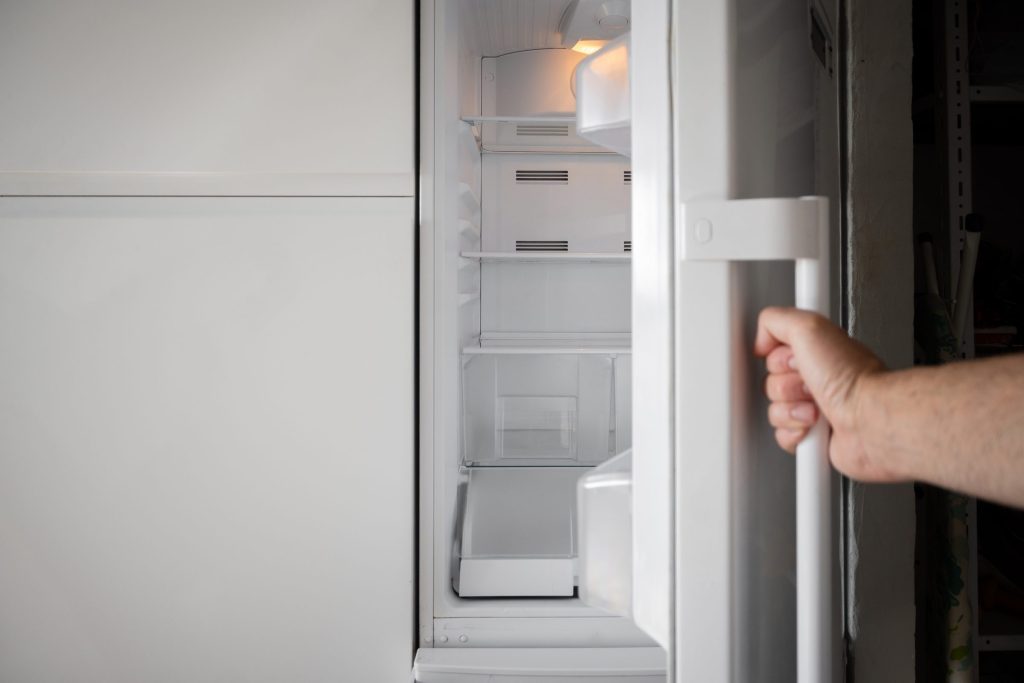

Refrigeration columns and undercounter units are handed. JB36NXFXLE and JB36NXFXRE are one 36-inch built-in bottom-freezer with the door swinging opposite ways, and JBRFL36IGX is a left swing where JBRFSR30RX is a right. A hinge, a gasket or a door that has to be ordered rather than adjusted is ordered against that letter, not against the family.
Why the number matters more here than on most badges
The error codes on this equipment are not this badge’s alone. JennAir, KitchenAid, Whirlpool, Maytag and Amana are one corporation running one control platform, and the F-and-E table is shared between them. A code tells you which system reported and almost nothing about which machine you own. The model number is what closes that gap, which is why it is the first thing we ask for and the first thing any parts counter will ask for.
Where the plate is on equipment that is built in

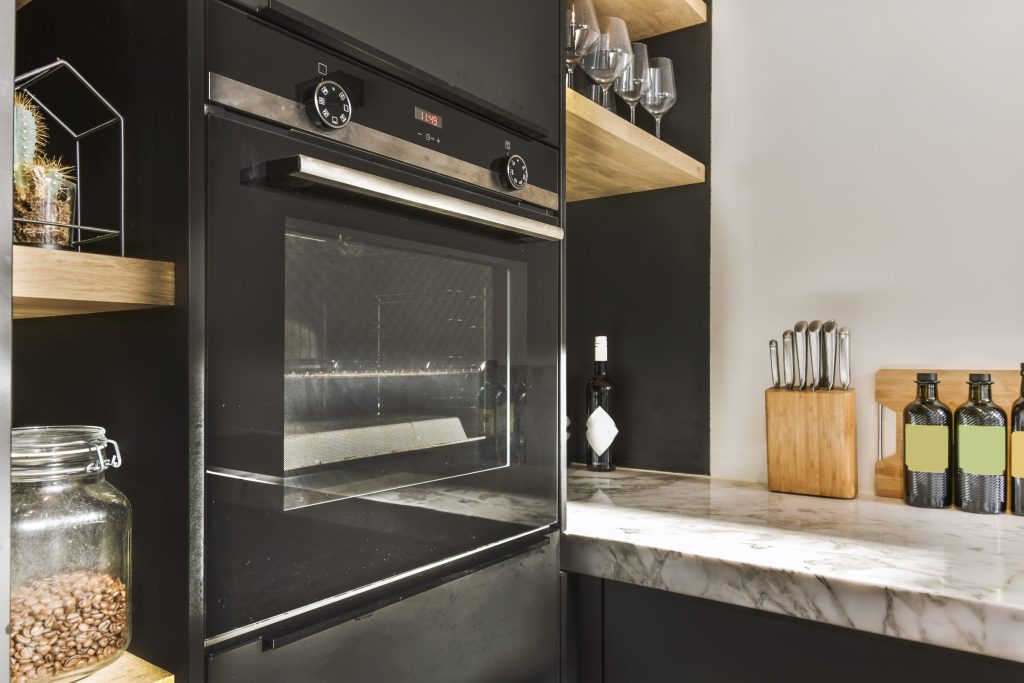

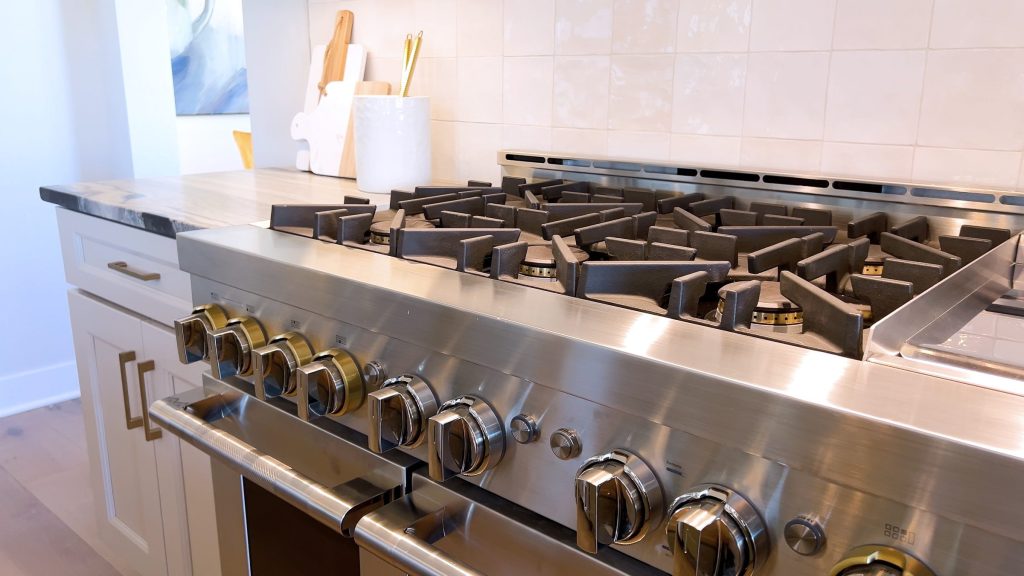

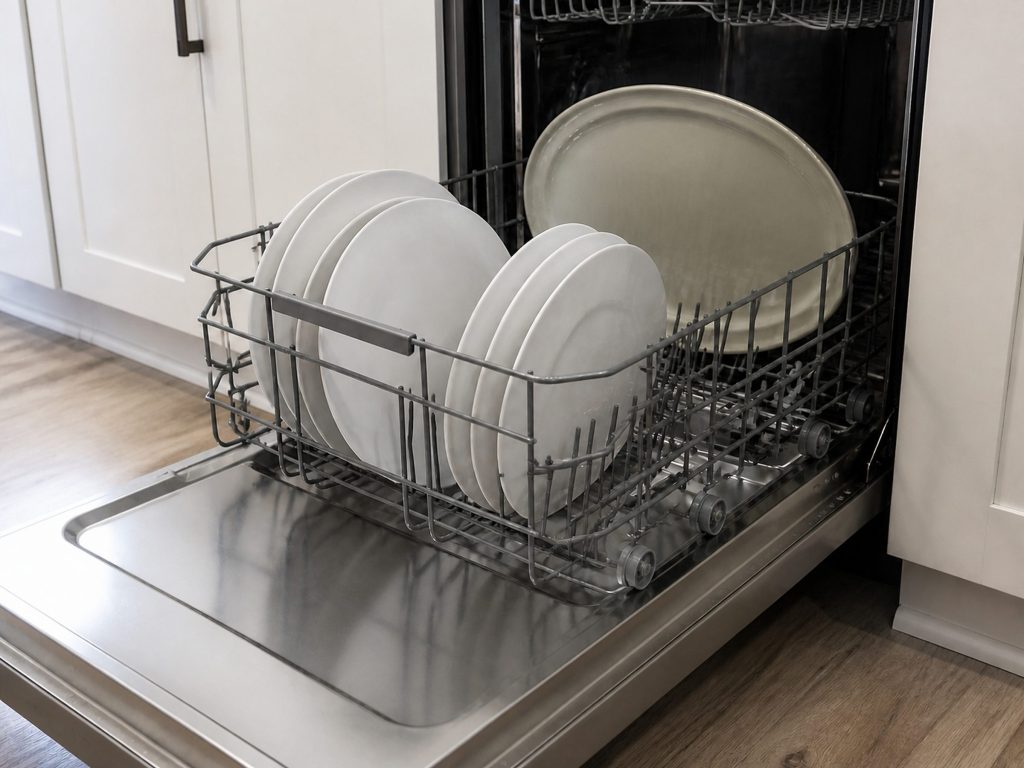

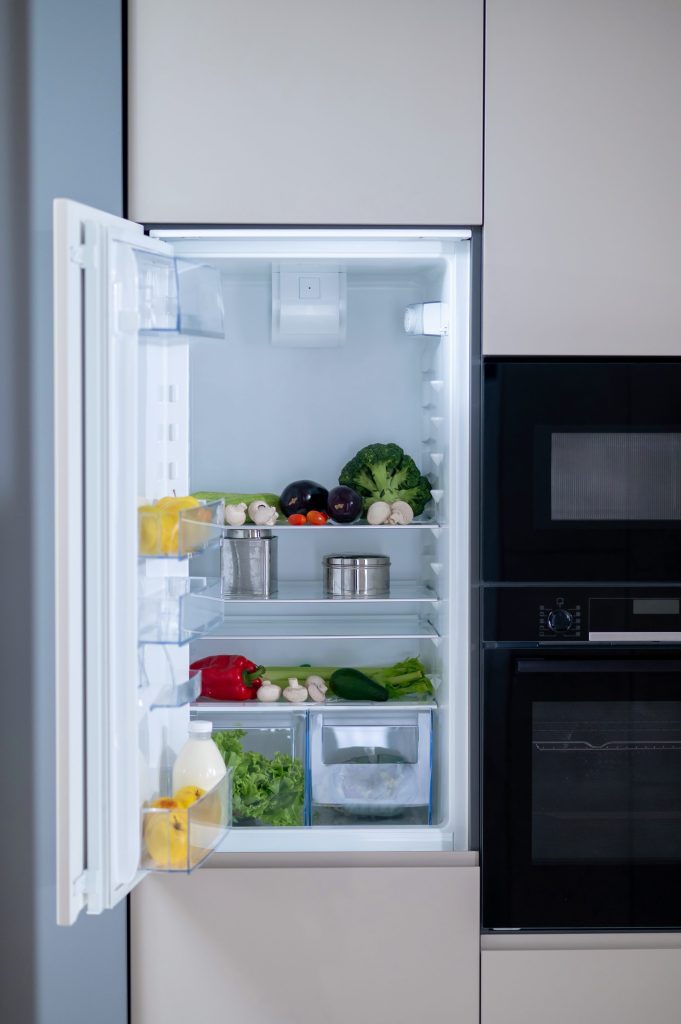

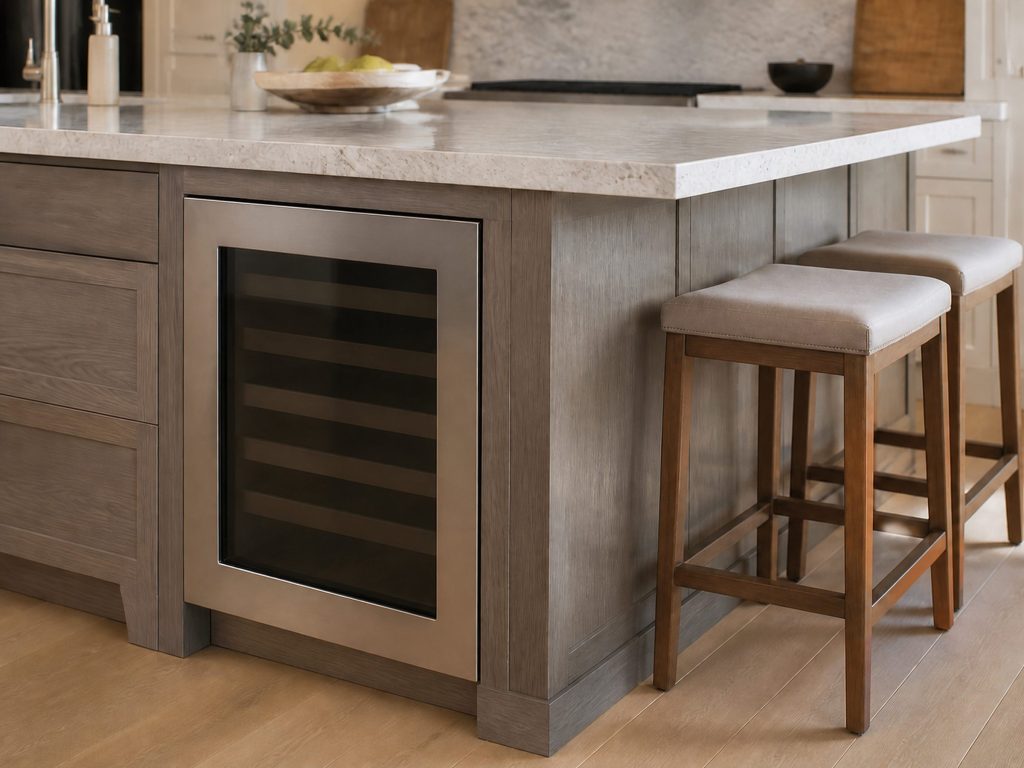

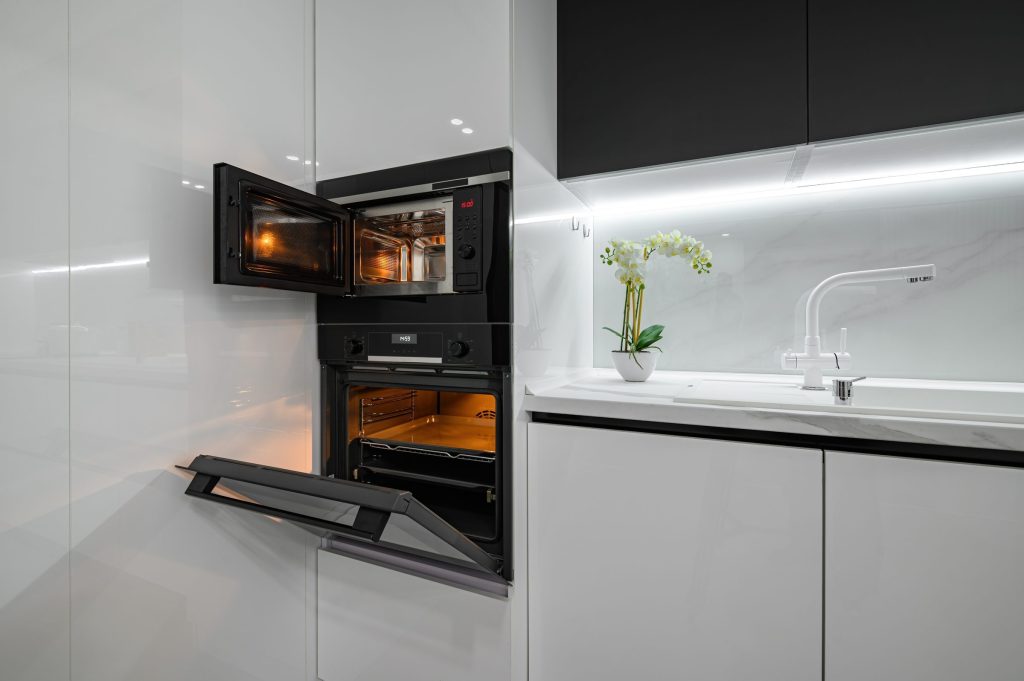

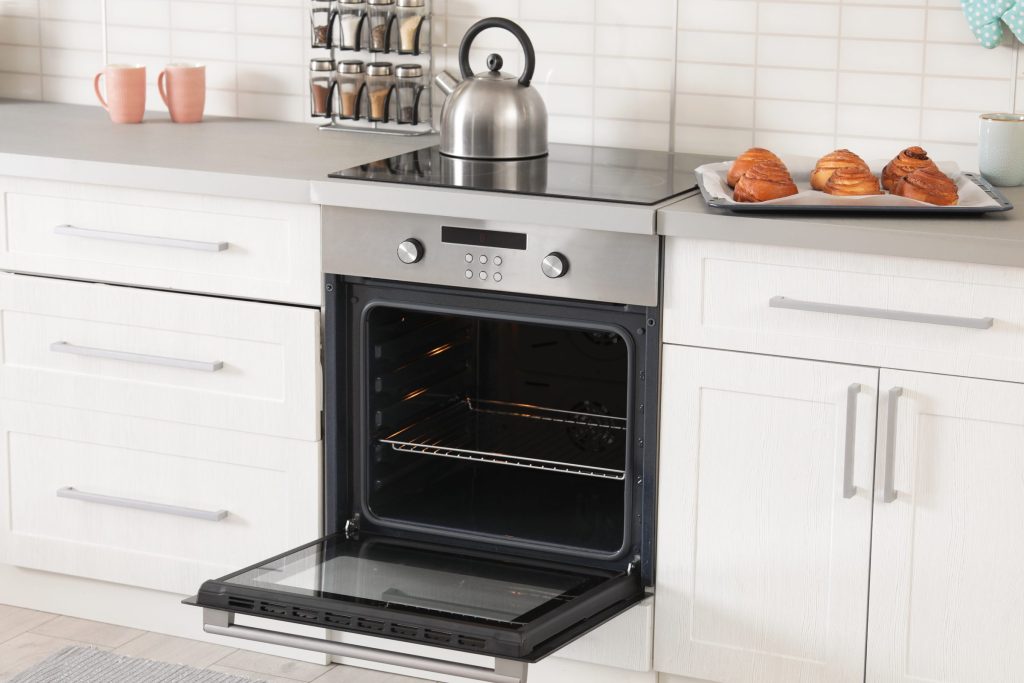

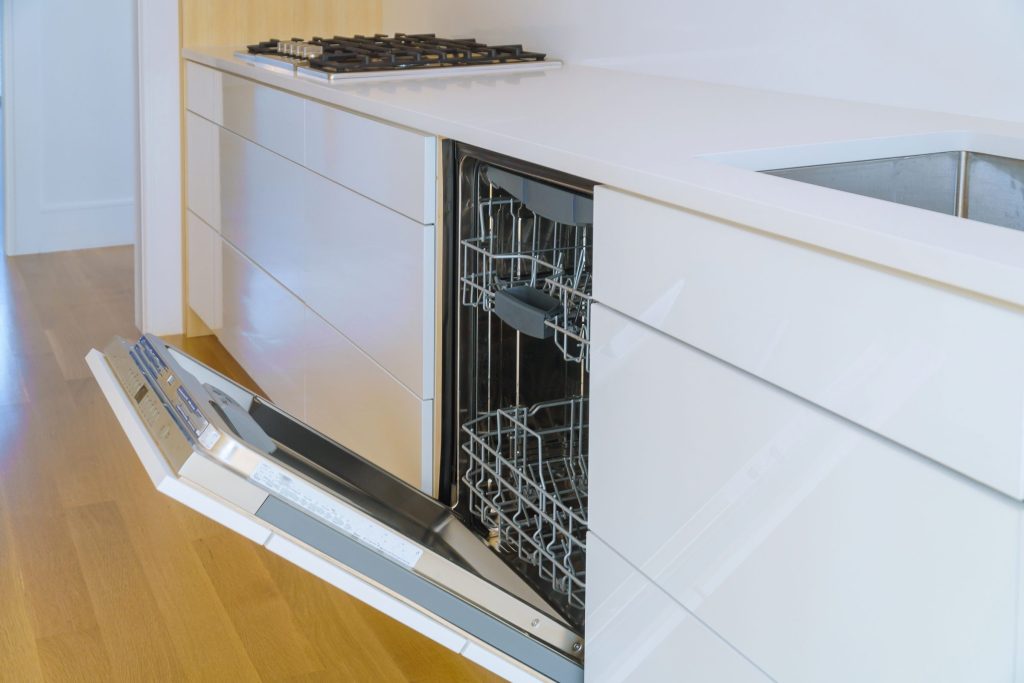

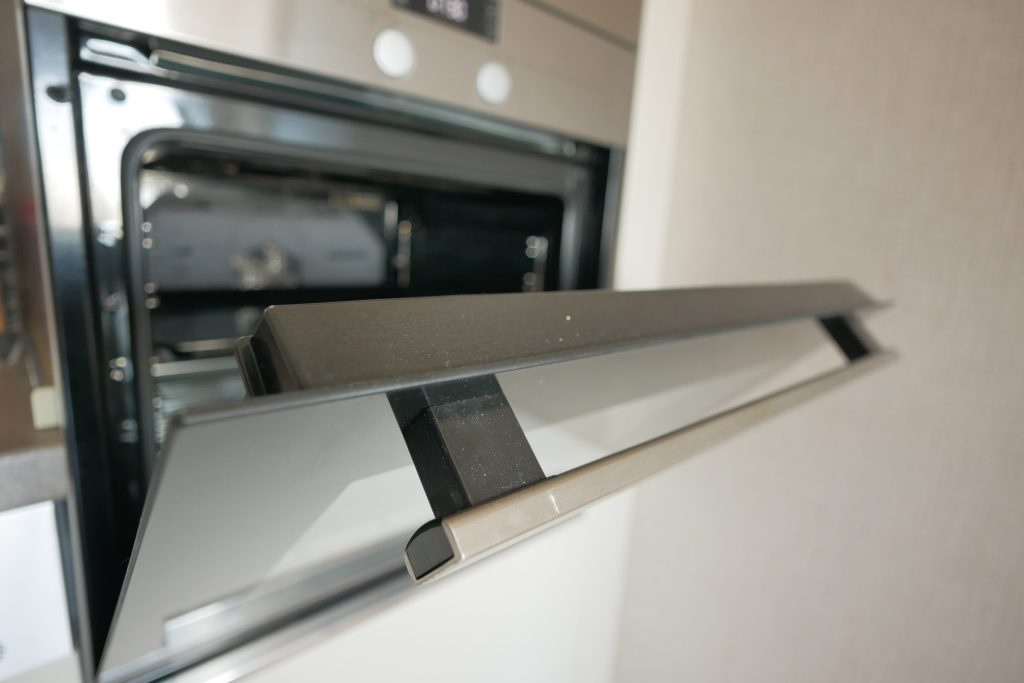

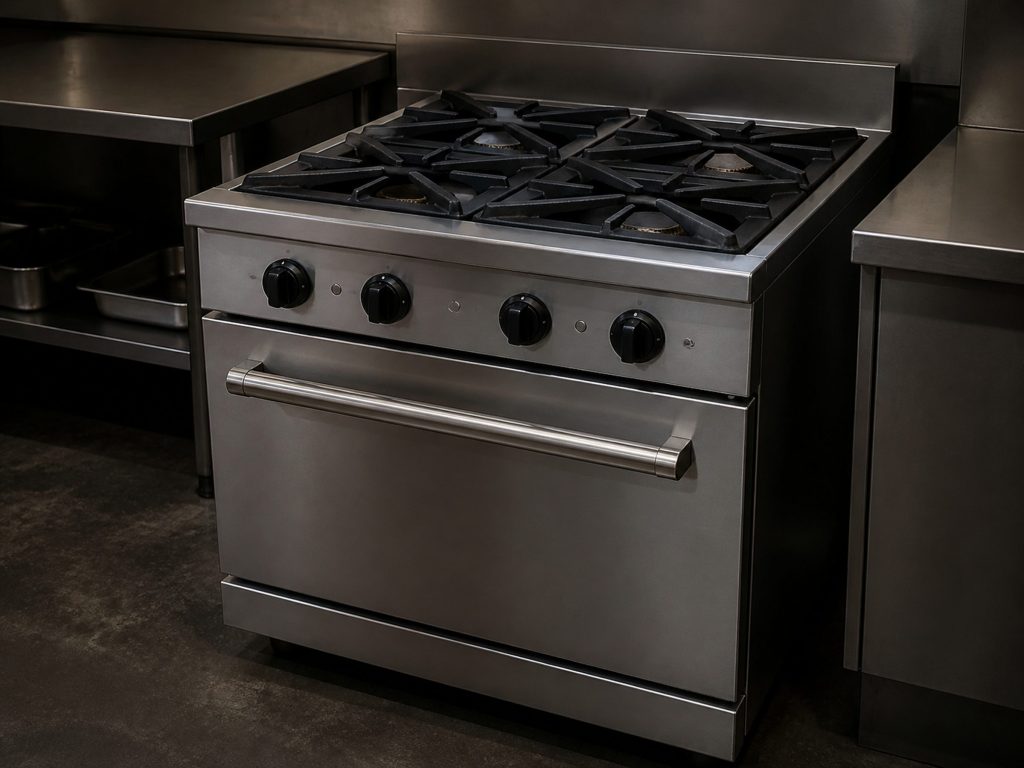

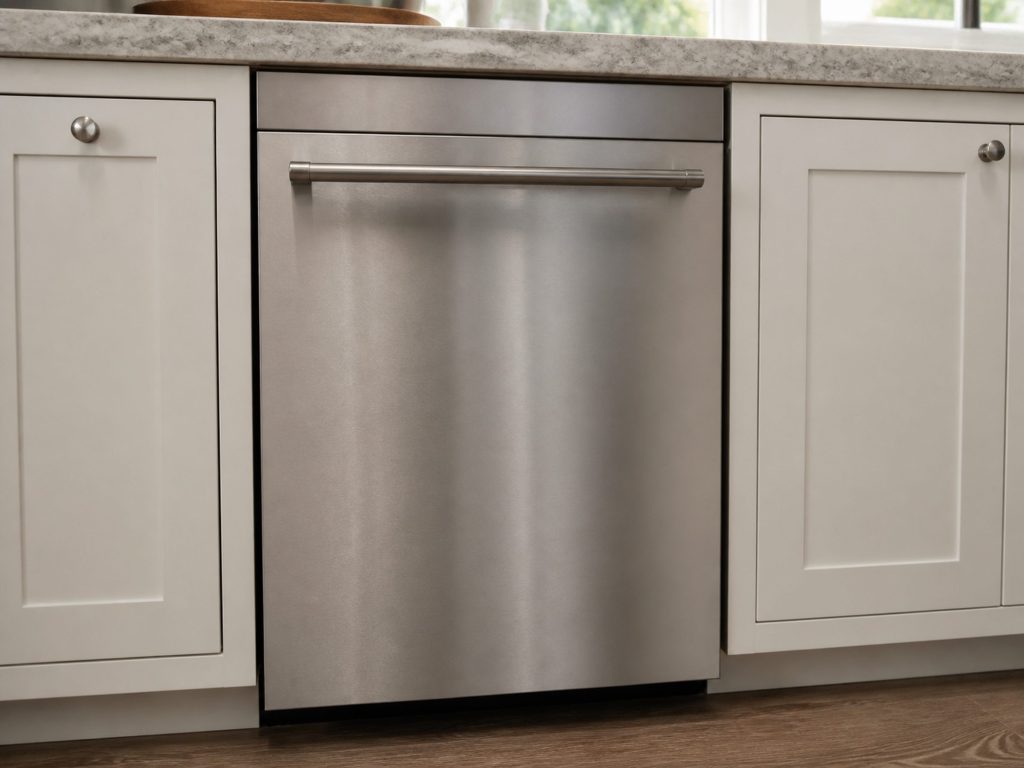

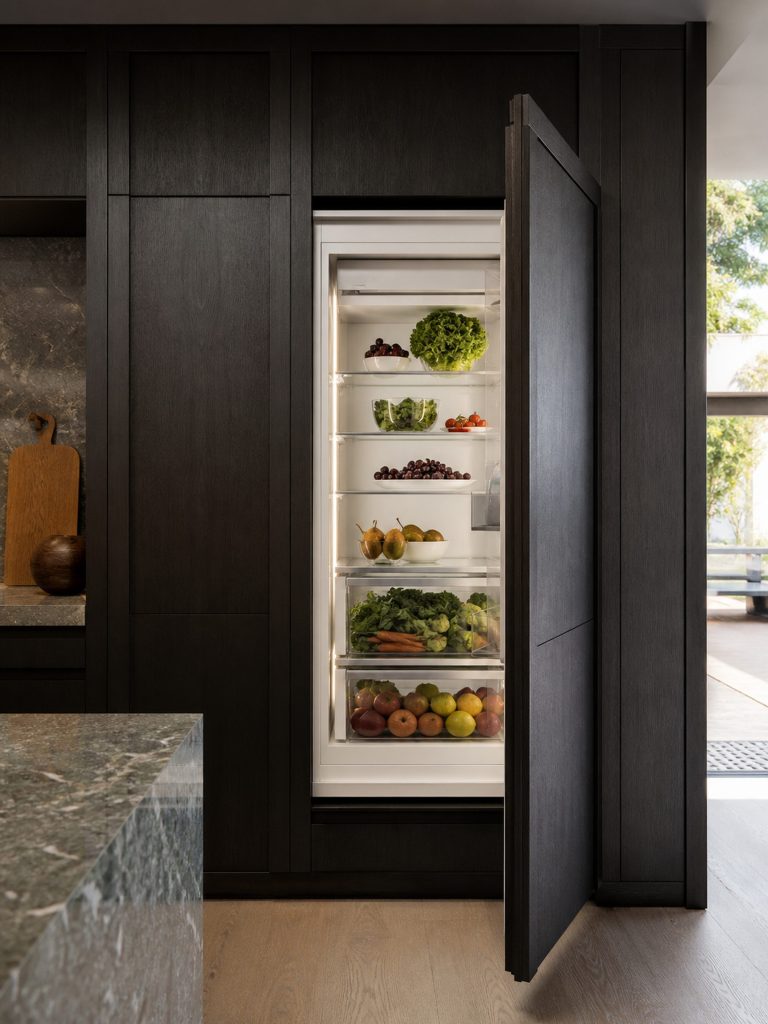

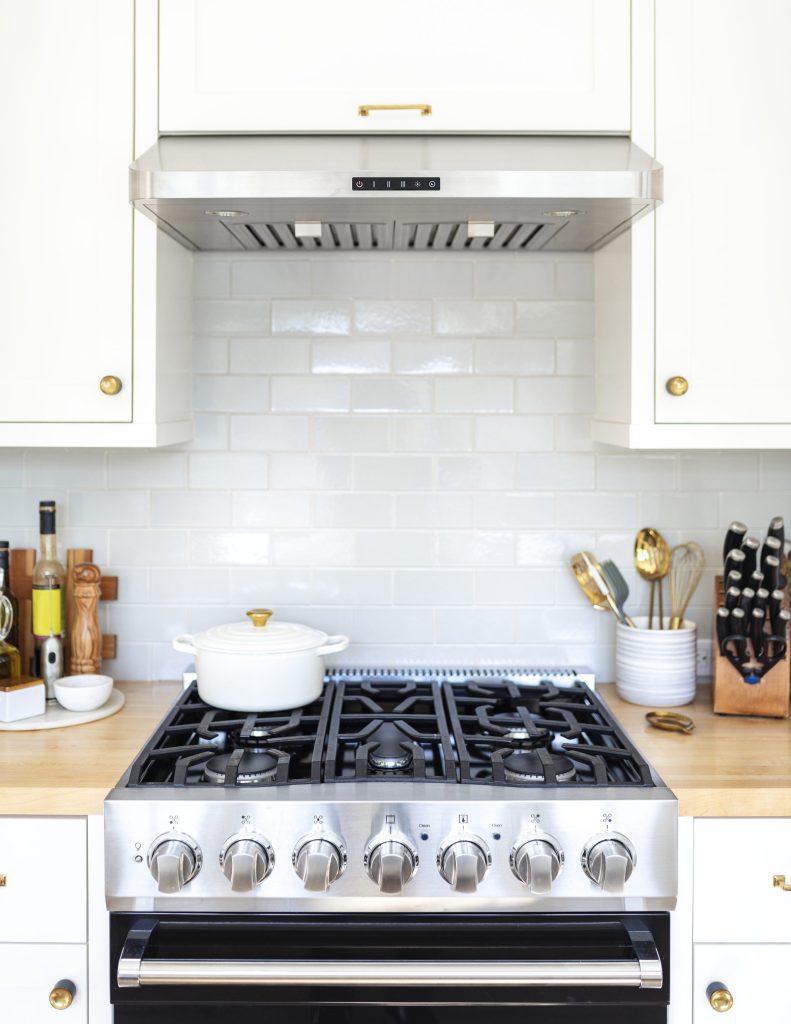

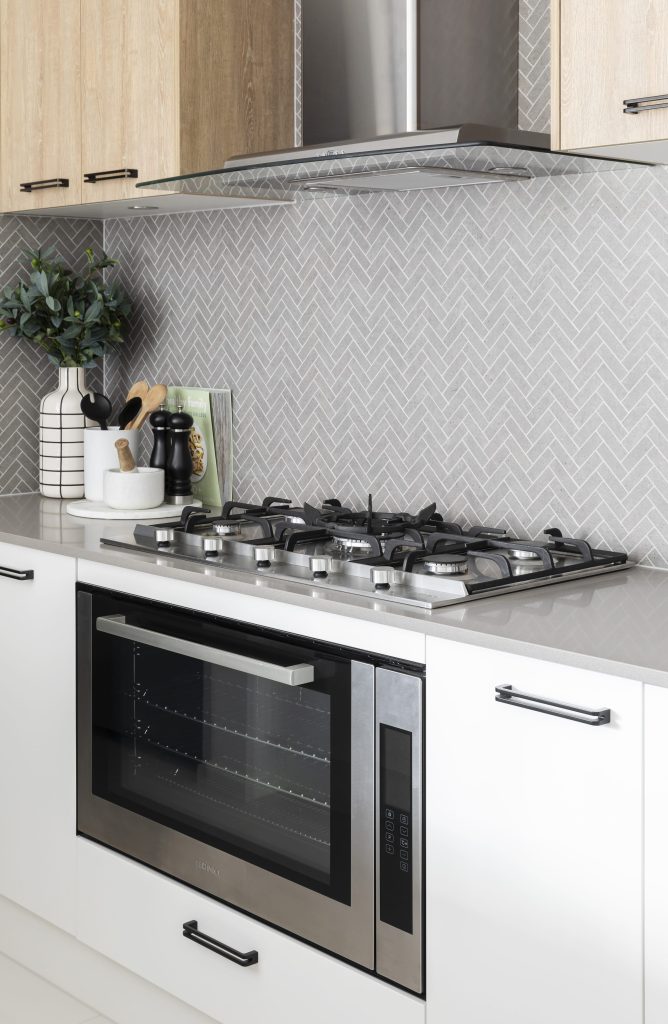

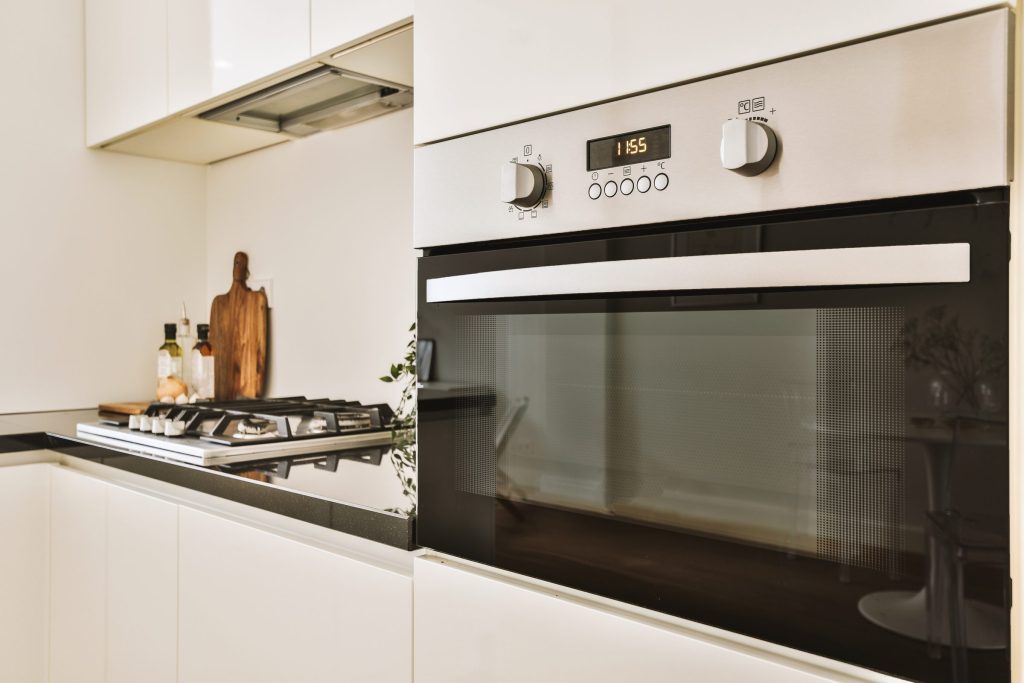

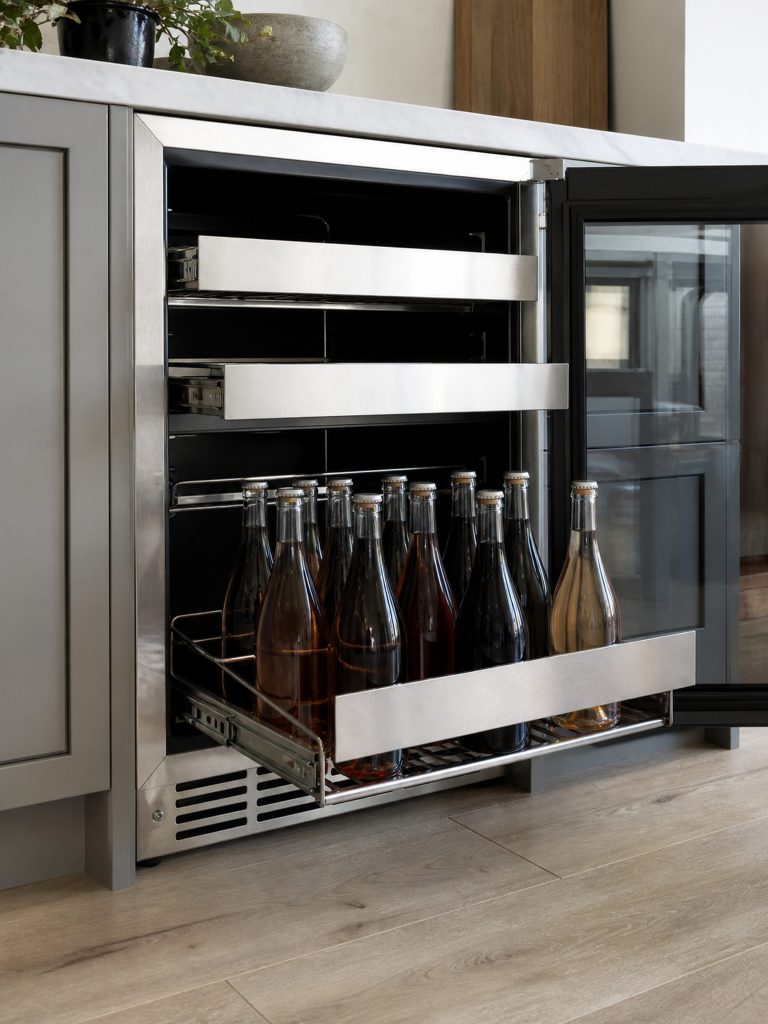

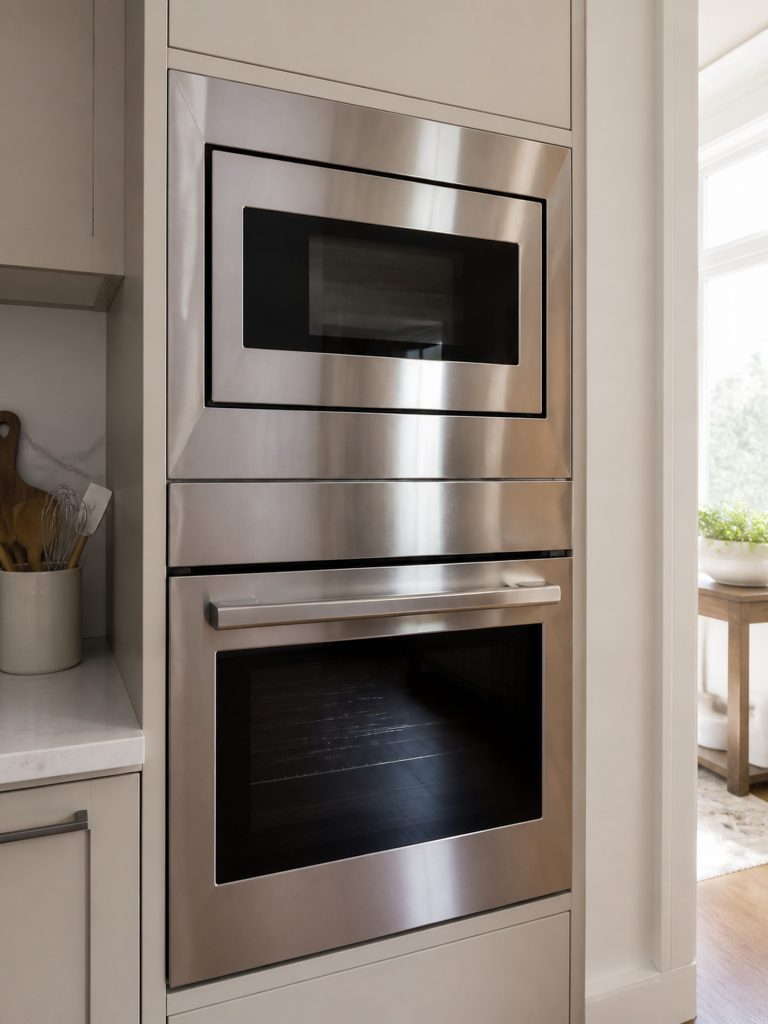

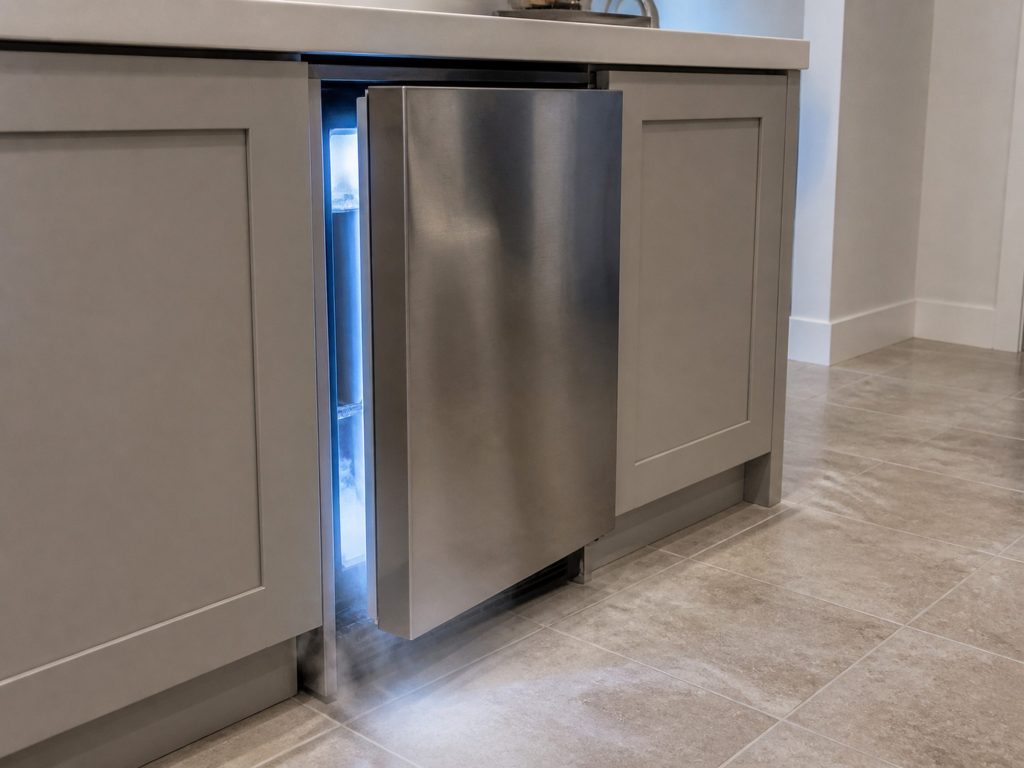

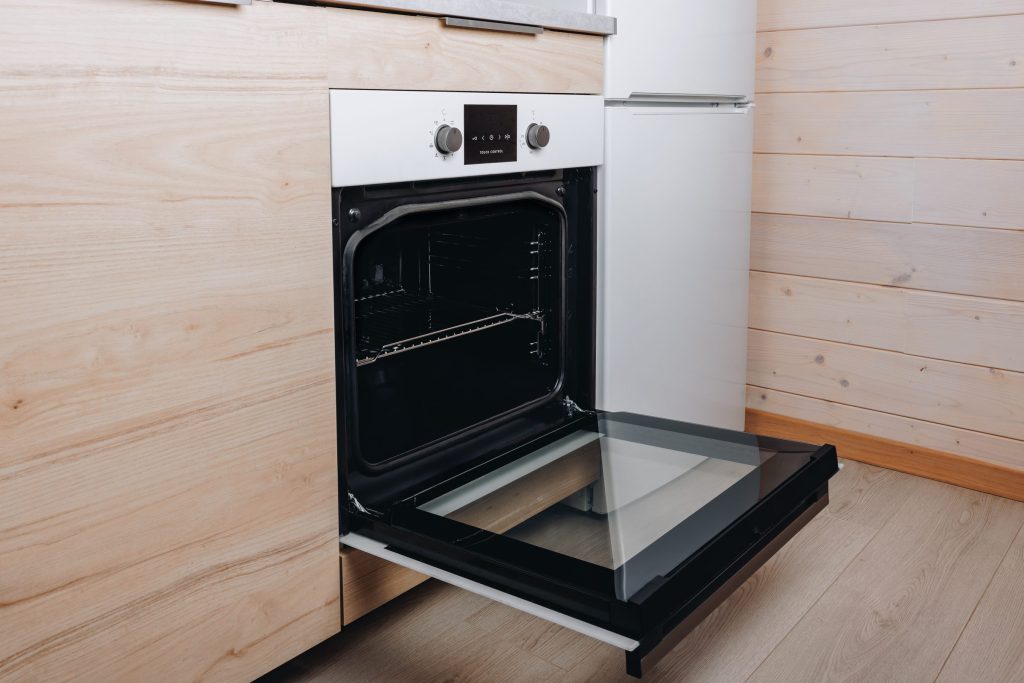

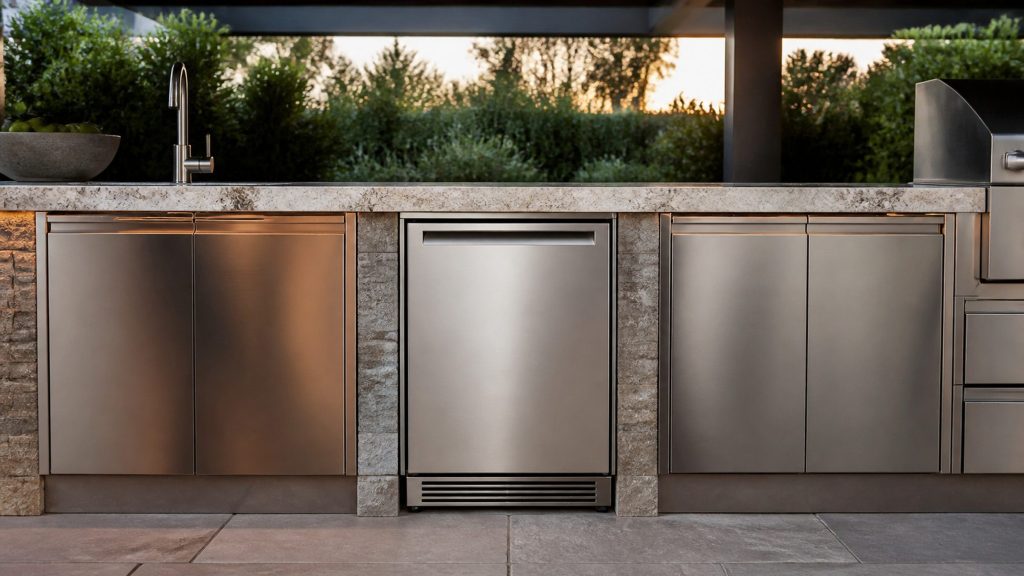

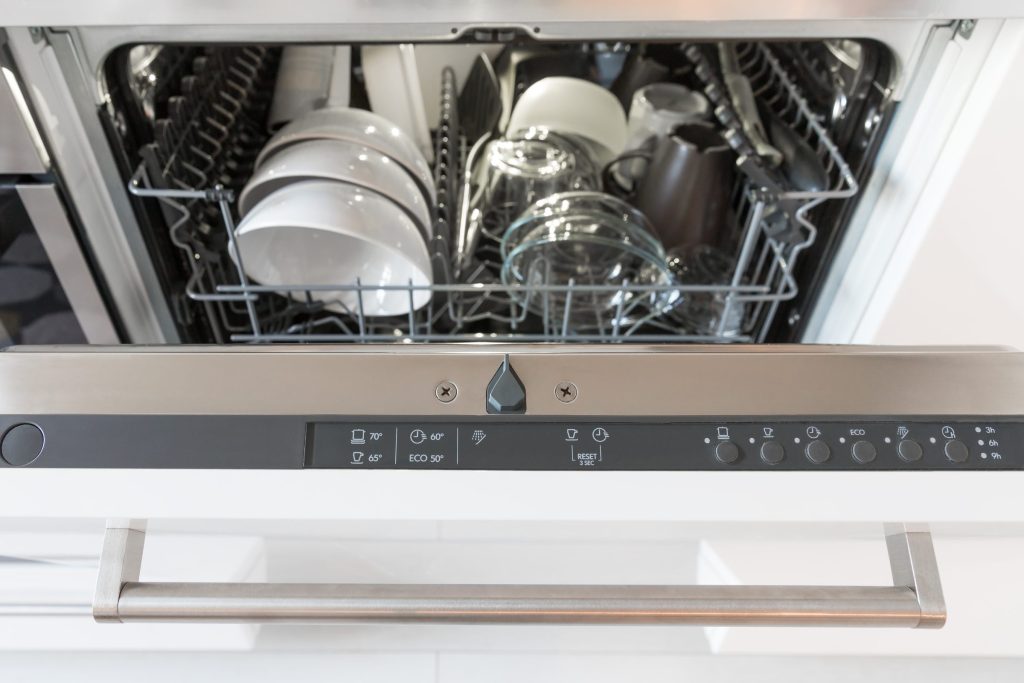

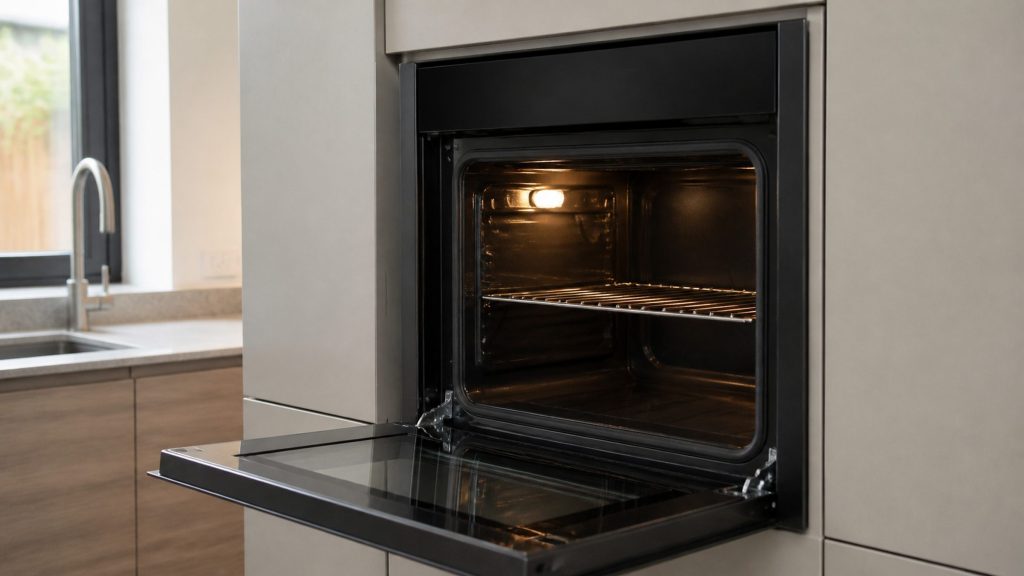

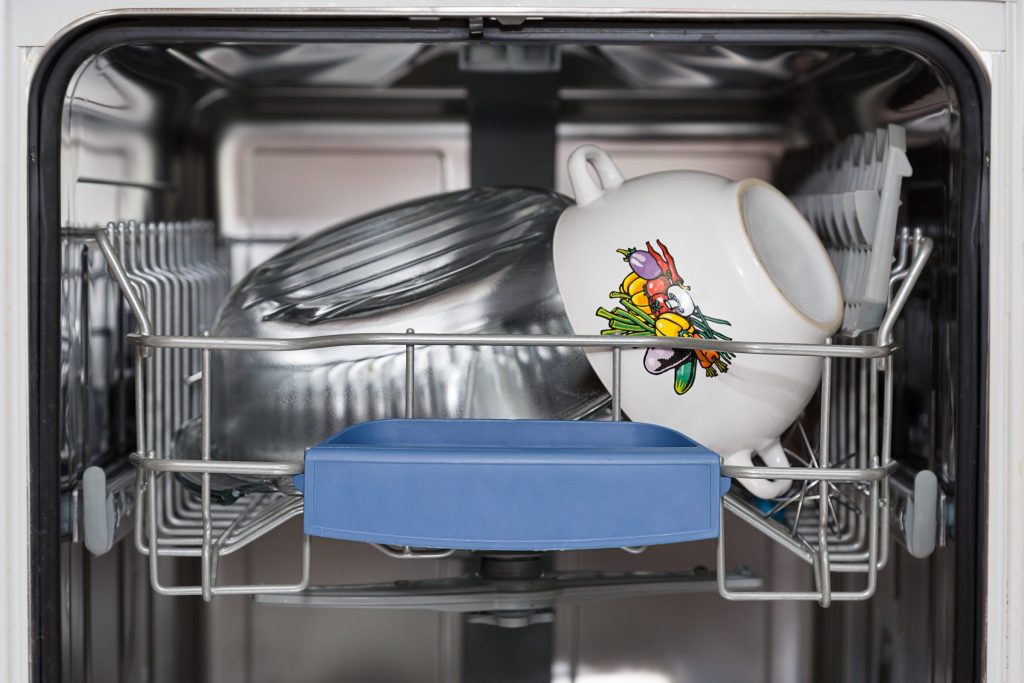

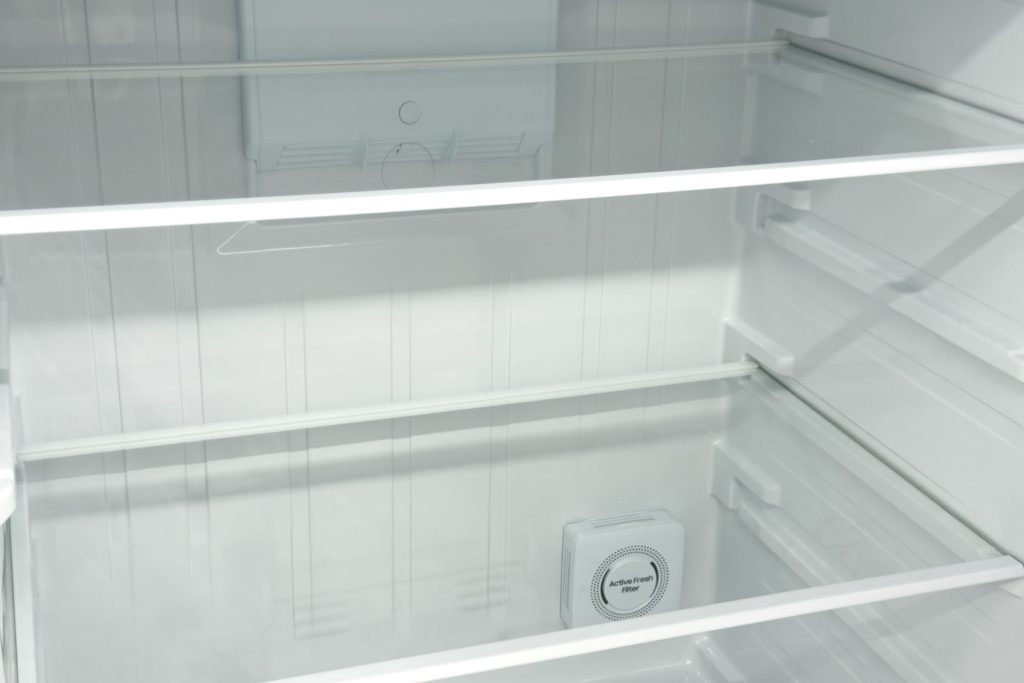

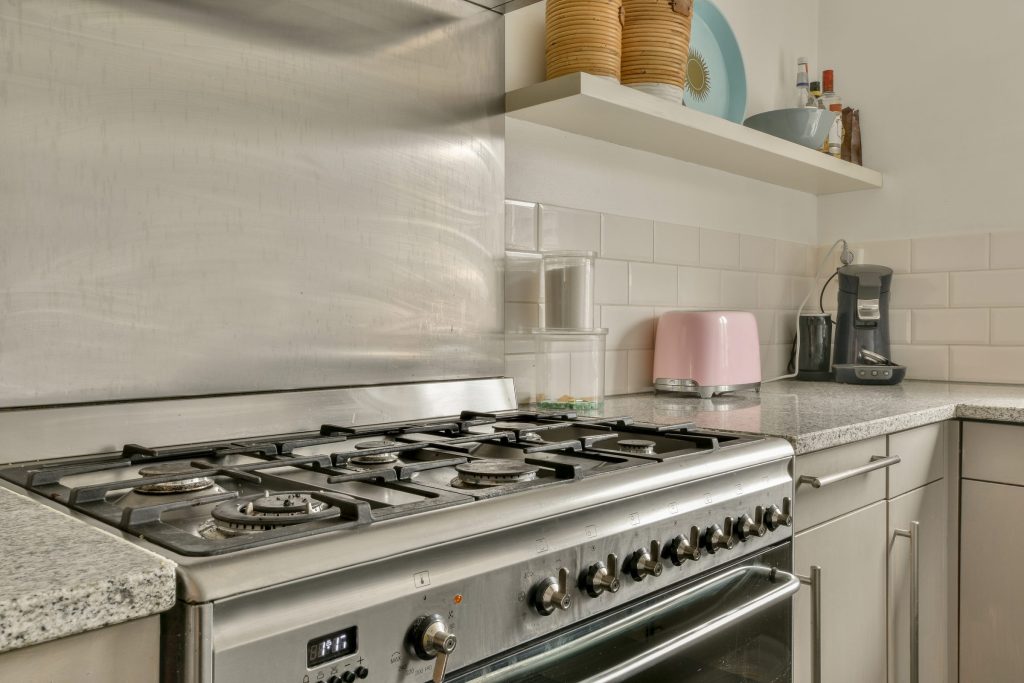

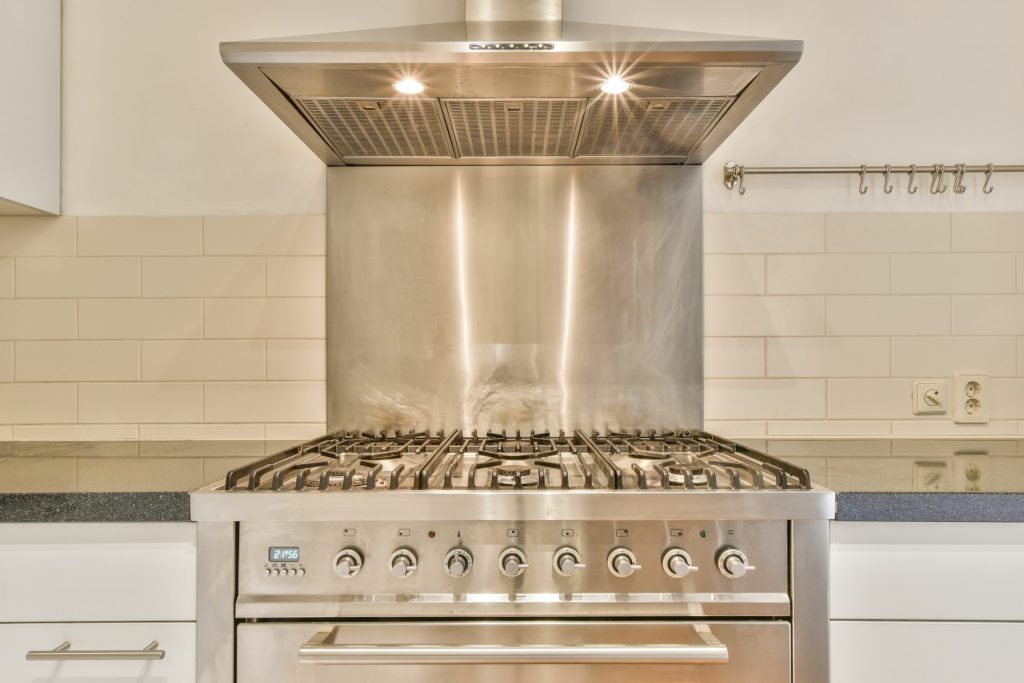

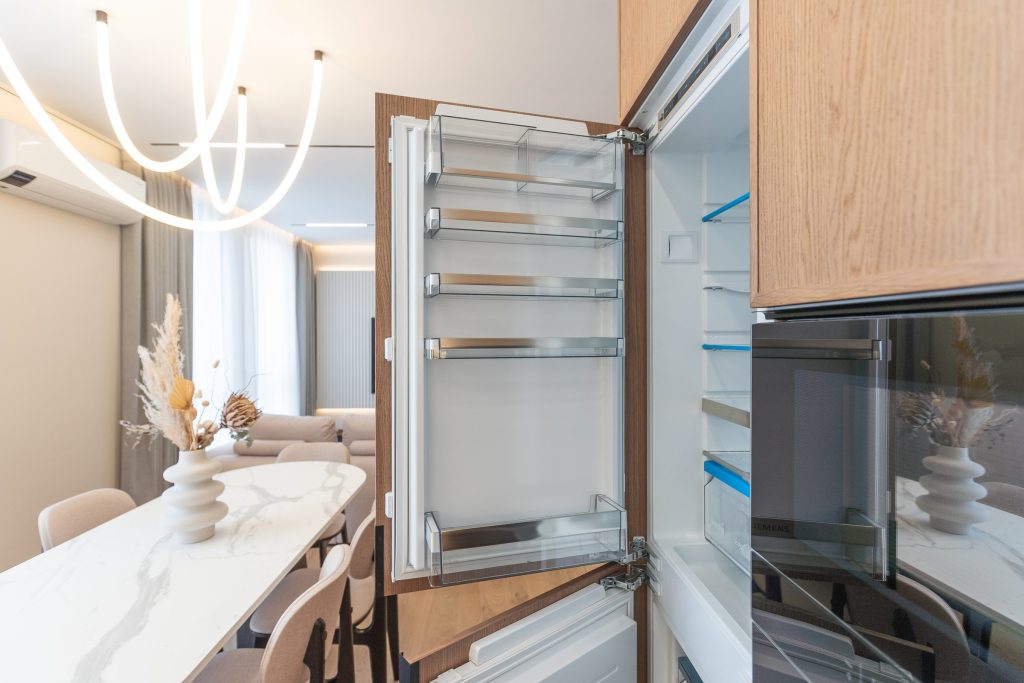

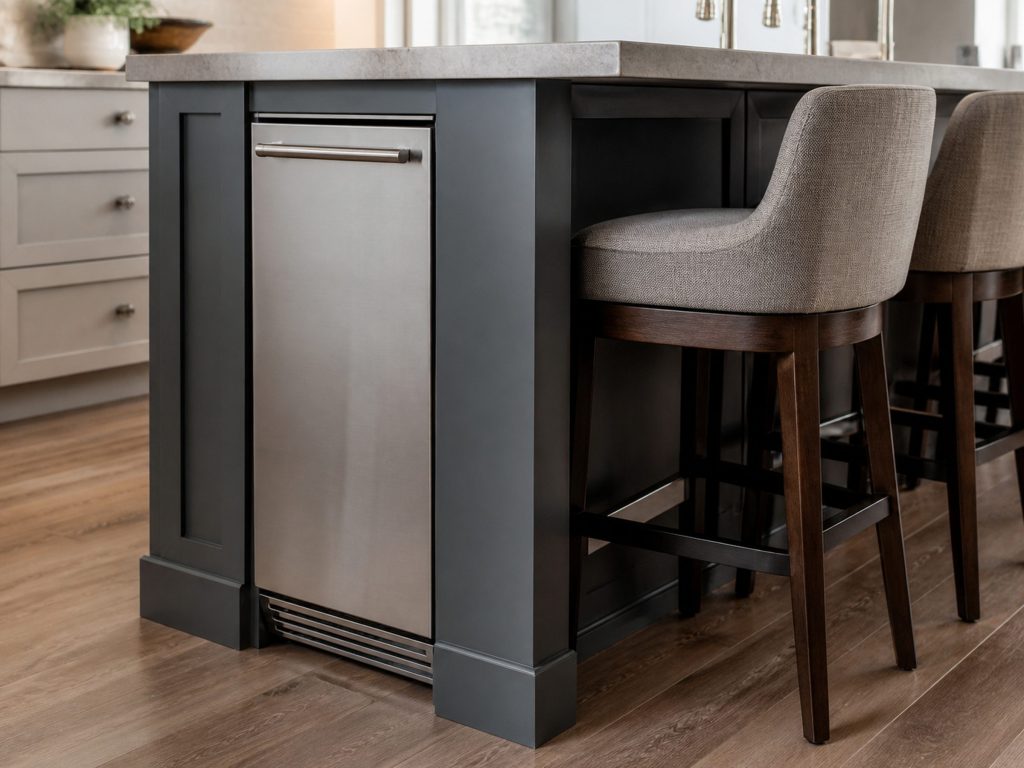

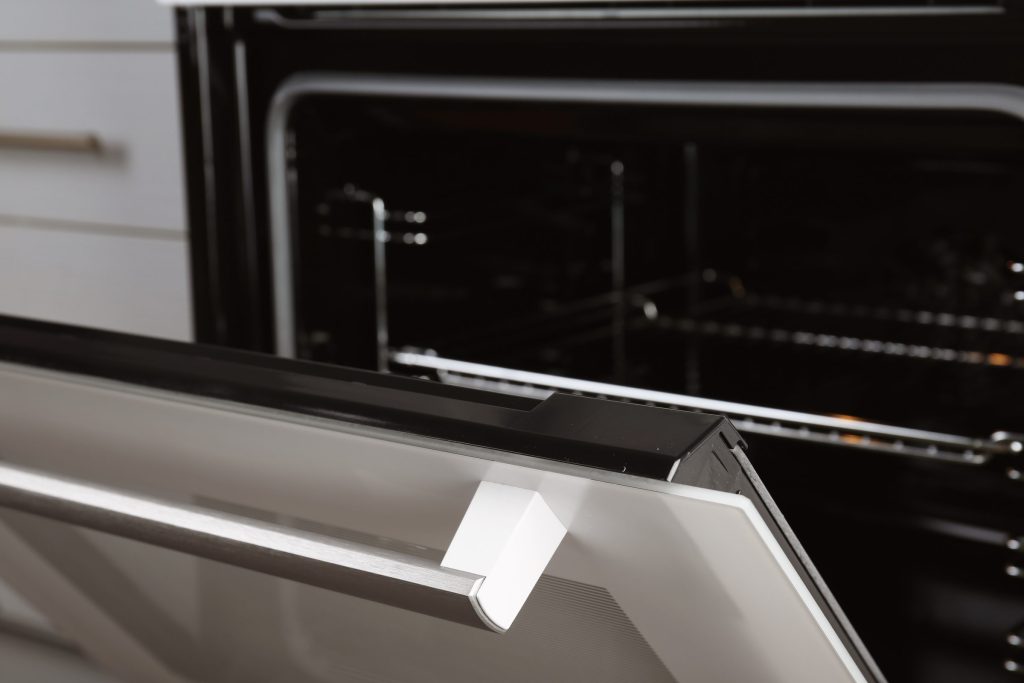

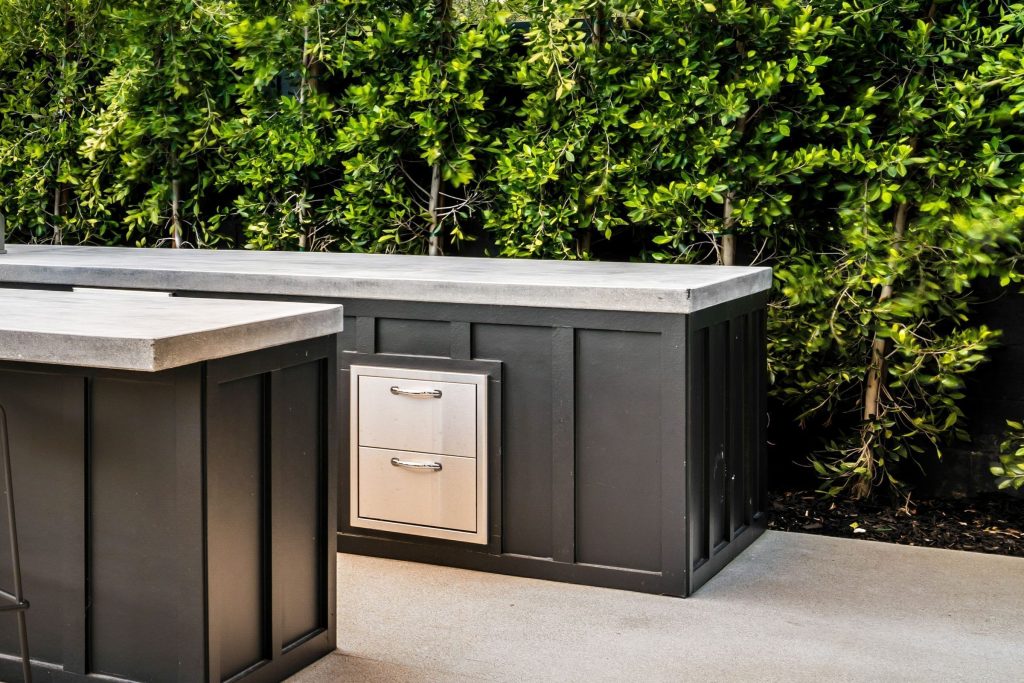

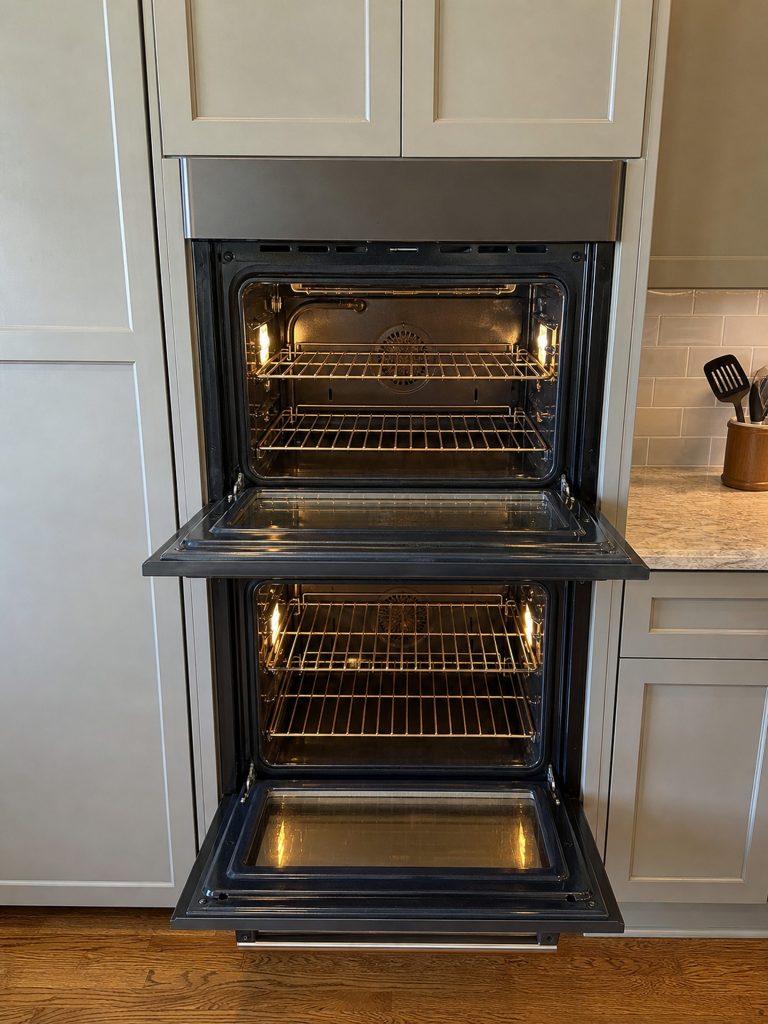

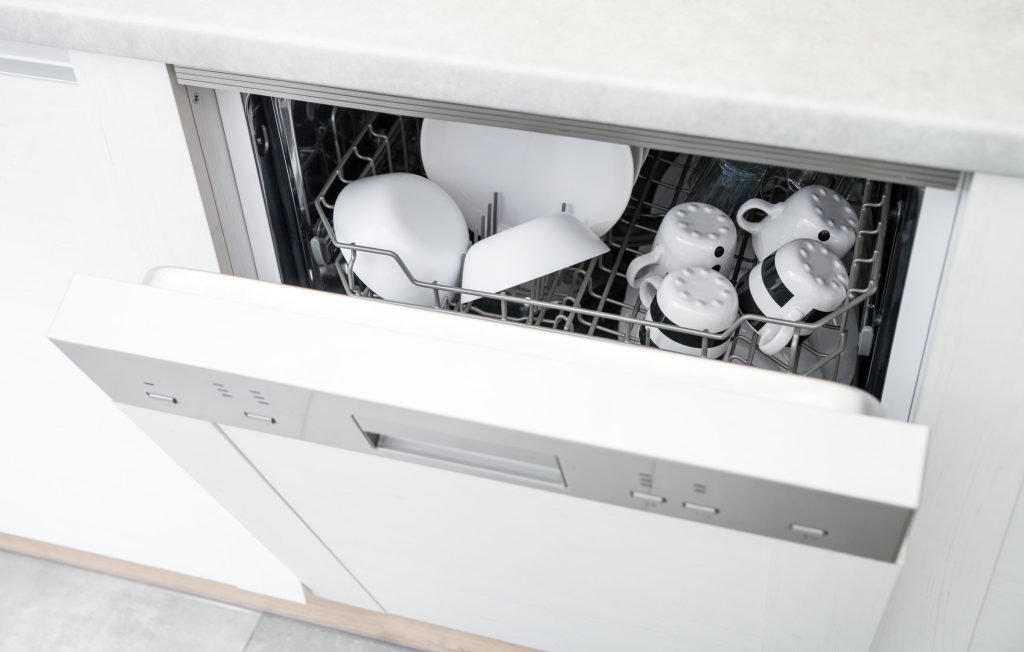

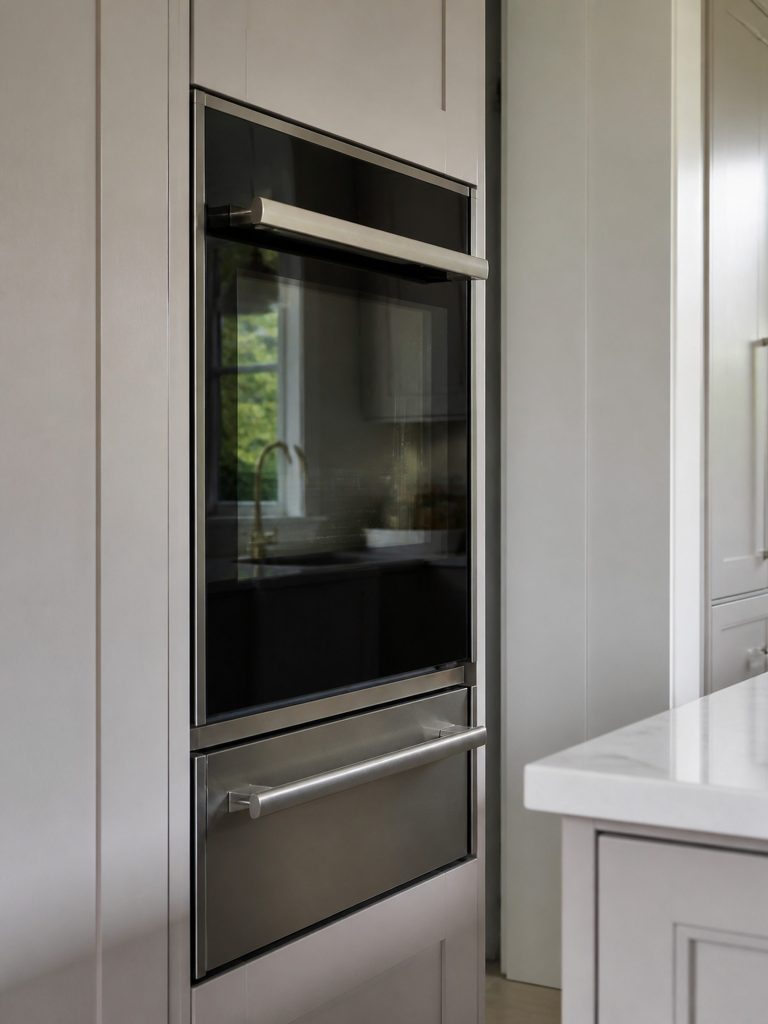

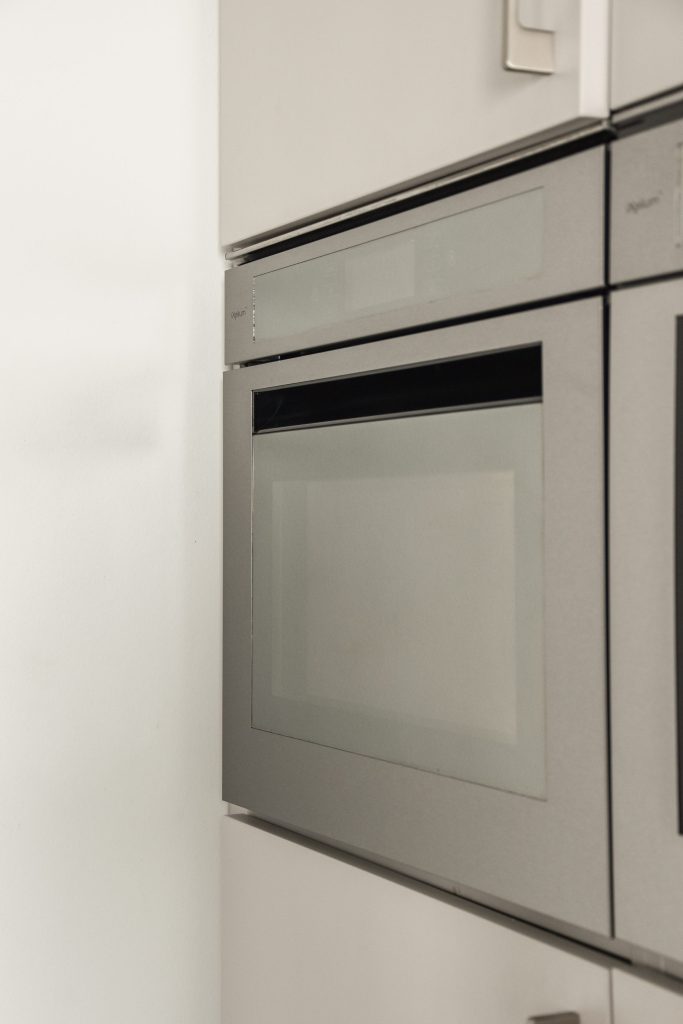

Almost nothing in this line stands on the floor, so the plate is almost never where a freestanding appliance keeps it. On refrigeration it is behind the grille above the doors, on the left of the opening, or inside near the top of the fresh-food compartment. On a dishwasher it is on the edge of the door, visible only with the door open, and on a fully integrated one you are reading it behind your own cabinet panel. On a wall oven or a range it is on the door frame behind the door, or under the control panel. On undercounter and drawer units it is inside the door opening. Photograph the whole plate rather than copying it out: the characters run together and one wrong one changes which parts fit.
This list is what people ask about, not what we repair
There are 153 numbers with pages here across nine appliance types, because those are the numbers people search for. The line is larger than that and we work on the rest of it too — the pages simply follow the questions. If your number is not on this list, it does not mean the machine is not ours to look at.
